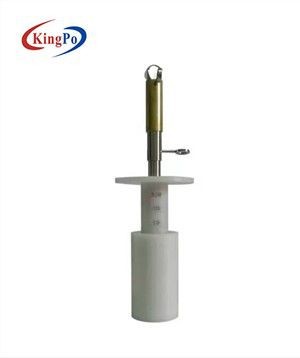

IEC 60335 Figure 7 Test Finger Nail

Name: IEC 60335 Figure 7 Test Finger Nail
Brand: KingPo
Price: 1 USD

Brand Name : KingPo

MOQ : 1

Place of Origin : China

Certification : ISO 17025 Calibration certificate

Price : To be quoted

Packaging Details : safety box

Delivery Time : 3~15 working days

Payment Terms : 100% TT in advance

Supply Ability : 10-20 units per month

Standard : IEC 60335 figure 7

Probe length : 80

Angle of the finger nail : 37°

Diameter of the test finger : Φ12

force : 10N, 20N, 30N

origin : China

Contact Now

Product Details

Product information:

The test finger nail complies with the IEC 60335 figure 7 standard requirements. It is applicable for the non-removable components which are used for electric shocking water or touching the movement parts to see whether they can go through the mechanical stress that happened in normal use. Thus to judge the components conform to the required protection grade or not. Three kinds of force can be applied. They are 10N, 20N, 30N.

Parameters:

Model	KP-123
Probe length	80
Angle of the finger nail	37°
Diameter of the test finger	Φ12

IEC 60335 Figure 7 Test Finger Nail

Hot Tags: iec 60335 figure 7 test finger nail, China, manufacturers, suppliers, factory, custom, wholesale, Stainless Steel Explosion Proof Test Chamber, 72V5A Battery Charge And Discharge Tester, Explosion Proof Test Chamber, Battery Washing Testing Machine, Heat Resistance Compression Test Device, Ragid Test Probe With Force

IEC 60335 Figure 7 Test Finger Nail Images
