IEC61032 Figure 14 Access Probe 31

Name: IEC61032 Figure 14 Access Probe 31
Brand: KingPo
Price: 1 USD

China IEC61032 Figure 14 Access Probe 31 wholesale

Brand Name : KingPo

MOQ : 1

Place of Origin : China

Certification : ISO 17025 Calibration certificate

Price : To be quoted

Packaging Details : safety box

Delivery Time : 3~15 working days

Payment Terms : 100% TT in advance

Supply Ability : 10-20 units per month

standard : IEC61032 Figure 14

test sample : food waste disposal units

Rod diameter : 25mm

length : 80mm

warranty : 1 year

origin : China

Contact Now

Product Details

Product information:

Food waste probe 31 confirms to IEC61032 figure 14 standard. It is used for checking food waste disposal units of milling system of hazardous mechanical parts whether is touched or not.

Rod: Ø25mm, 80mm long, interchangeable metal or Delrin probe. It conforms to the IEC61032 Test probe 31.The handle is made of nylon,tip is made of stainless steel.

Customizable: Euipped with threaded hole of M6 at the end of the handle(coordinate with pull and push dynamometer)

Standard:IEC61032 test probe 31 figure 14.

Application:It is used for checking food waste disposal units of milling system of hazardous mechanical parts whether is touched or not.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:Euipped with threaded hole of M6 at the end of the handle(coordinate with pull and push dynamometer)

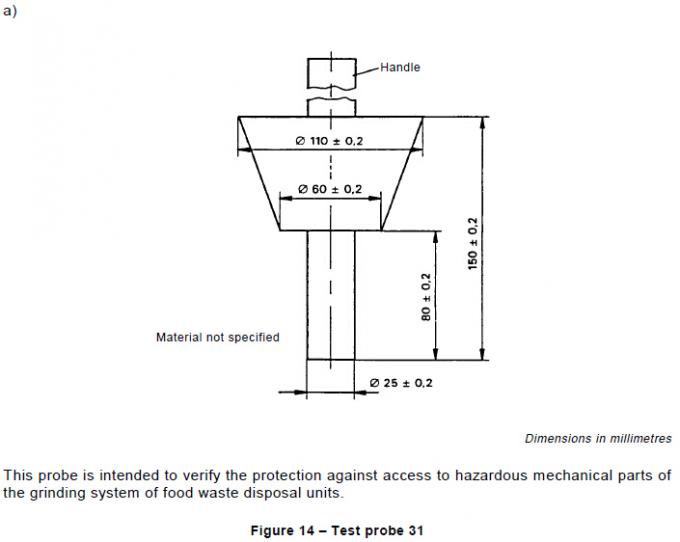

Main specification and corresponding technical parameters:

Parameters /Model	Food waste probe 31 HT-I14
1	Ф25±0.2
2	80±0.2
3	Ф60±0.2
4	Ф110±0.2
5	150±0.2

IEC61032 Figure 14 Access Probe 31
