AC220V 50Hz IEC Test Equipment For Checking Wire Conductors Damage

Name: AC220V 50Hz IEC Test Equipment For Checking Wire Conductors Damage
Brand: KINGPO
Price: 1 USD

China AC220V 50Hz IEC Test Equipment For Checking Wire Conductors Damage wholesale

Brand Name : KINGPO

MOQ : 1

Certification : calibration certificate

Place of Origin : China

Price : To be quoted

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 20 working days

Packaging Details : safety wooden box

Power Supply : AC220V, 50Hz

Test Speed : (10±2)r/min

Working Stations : 2

Test Height : 260, 280, 300, 320mm

Rotating Radius : 35mm

Rotating Weight : 0.3,0.4,0.7,0.9,1.4,2.0kg

Contact Now

AC220V 50Hz IEC Test Equipment For Checking Wire Conductors Damage

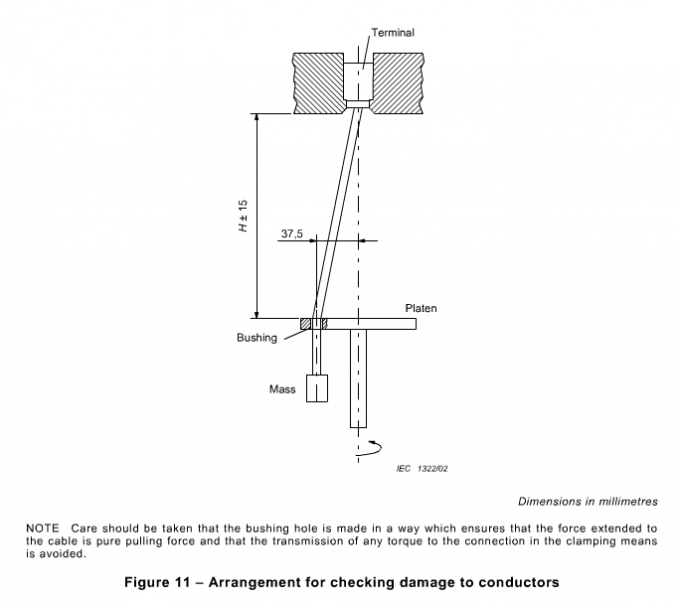

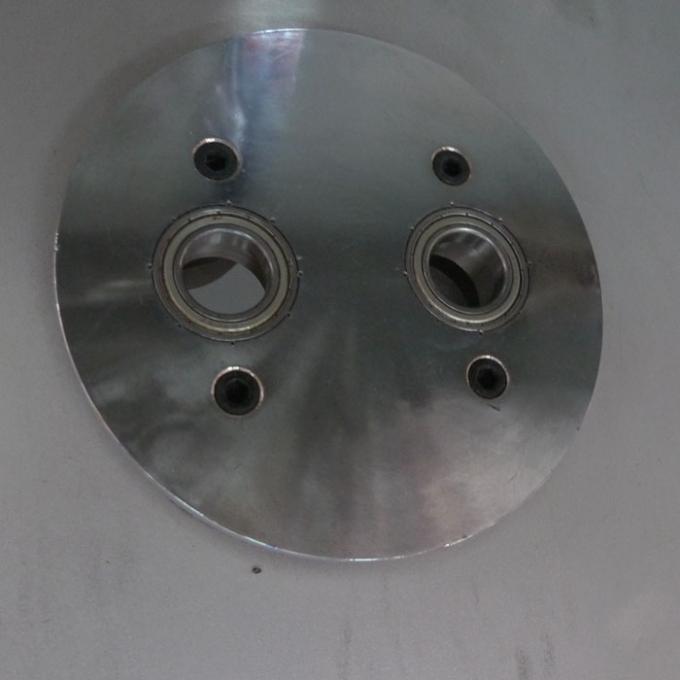

IEC60884-1 Figure 11 Test Apparatus For Checking Damage To Conductors

Product details:

This testing machine is also called the test apparatus for checking damage degree of wire which confirms to many standards such as IEC60884-1 clause 12.3.10 figure 11, IEC60669 and so on. This compliance is used for judging whether the design and the structure of the clamping screw terminal is correspondent with the requirement of non over-damage to the wire. Besides, it is also used to check whether the clamping screw terminal can bear the stress during the process of normal usage. The testing times can be preset before the test, and the compliance stops automatically with the alarm when the testing times are reached.

Technical parameters:

Item	Parameters
Power Supply	AC220V, 50Hz
Test Speed	(10±2)r/min
Timer Range	0-99 hours 59 minutes
Working Stations	2 working stations
Test Height	260, 280, 300, 320mm (Adjustable)
Rotating Radius	35mm
Rotating Weight	0.3,0.4,0.7,0.9,1.4,2.0kg, each for 2 pieces
Pulling Weight	30N, 40N, 50N, 60N each for 2 pieces
Bushing Hole Diameter	Φ6.5mm, Φ9.5mm, Φ13mm, Φ14.5mm, each for 2 pieces.
Dimensions	1110mmX405mmX1320mm.
Environmental Requirements	0 ~ 40℃, Relative humidity ≤80%.

Values for flexing under mechanical load test for copper conductors

Nominal cross-sectional area of conductor (mm²)	Diameter of bushing hole ( mm)	Height (mm)	Mass for conductor (kg)
0.5	6.5	260	0.3
0.75	6.5	260	0.4
1.0	6.5	260	0.4
1.5	6.5	260	0.4
2.5	9.5	280	0.7
4.0	9.5	280	0.9
6.0	9.5	280	1.4
10.0	9.5	280	2.0
16.0	13.0	300	2.9
25.0	13.0	300	4.5
35	14.5	320	6.8
The height:±15mm. If the bushing-hole diameter is not large enough to accommodate the conductor without binding, a bushing having the next larger hole size may be used.

Maintenance and Precautions:

1. Bushing and weight should be kept clean and dry in non-working time, if necessary, painted with oil and seal.

2. The bearing parts should be lubricated periodically, and the whole unit should be kept clean.

3. Pay attention to safety when carrying the heavy weights.
