standard : IEC60065 Figure 11
weight : 2.5N*1, 1N*1
Arm of force : 0-200mm
Plug : UL plug*1, European plug*1,all-purpose plug*1

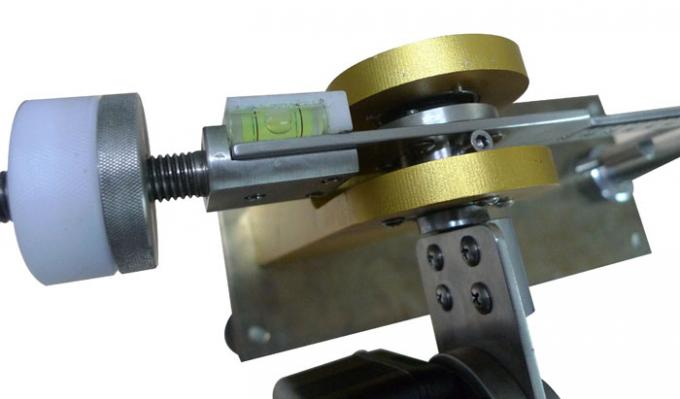

IEC60065 Figure 11Test Apparatus For Devices Forming A part Of The Mains Plug
Device forming a part of the mains plug
A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.
Compliance is checked by engaging the device, as during intended use, with the socket-outlet of a test apparatus as shown in figure 11. The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.
With the device not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position.
After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position of a weight on the balancing arm. The torque shall not exceed 0.25 Nm.
Note: This test is compatible with the test described in the IEC 60884-1.
Technical parameters:
weight | 2.5N*1, 1N*1 |
Plug | UL plug*1, European plug*1,all-purpose plug*1 |
Conforms to standard | IEC60884,VDE0620,IEC60598,IEC60065Fig11 |
Arm of force | 0-200mm |
The distance from the contact surface and the Axis of the surface | 8mm |
![]() |
IEC60065 Figure 11 Reliability Testing Equipment , Waterproof Testing Machine Images |
